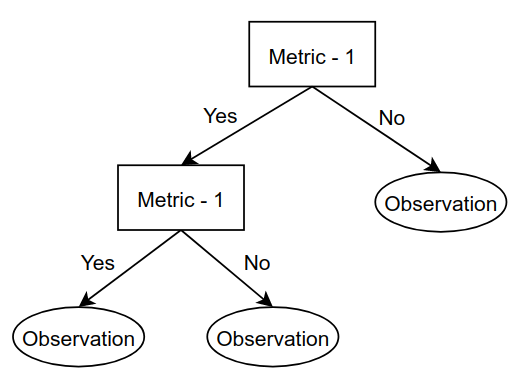

A decision tree is basically a way of codifying decisions as a tree data structure. The tree has the same concepts as trees in basic data structures:

  • Root node → the starting node of the tree.
  • Intermediate nodes → all the nodes that come after the root node and need to be parsed in a depthwise search.
  • Leaf nodes → the terminal nodes of the tree.

The main idea is to start from the root and traverse along the intermediate nodes to reach decisions on observations and actions.

Creating a Tree

Based on the video from, let us predict heart disease based on the following metrics:

  • Chest pain
  • Good blood circulation
  • Blocked arteries

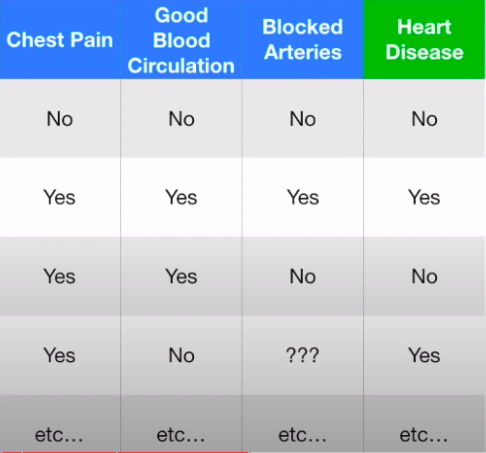

and we have the following table:

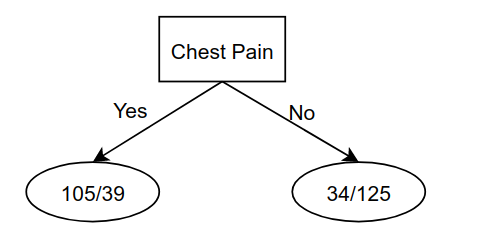

Let the observation nodes be represented as x/y, where x represents heart disease while y represents no heart disease. For chest pain, suppose we get the following observations from the labels:

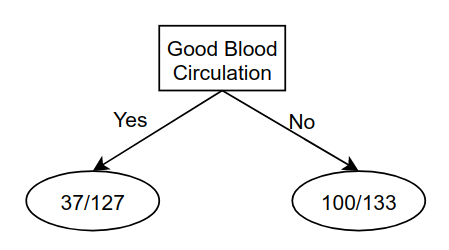

For good blood circulation:

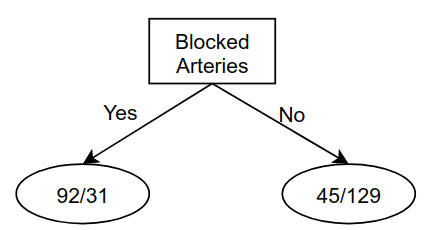

And for blocked arteries:

Here, the total number of patients for each of these metrics is different, since some patients did not have observations for all metrics. Now, since none of the leaf nodes have 100% observation on whether the patient has heart disease, they are considered impure. We need a way to measure and compare this impurity to determine which metric is better and use that as a higher level node.

Gini Impurity

The Gini impurity is mathematically written as:

\[G(s) = 1 - \sum_{i=1}^Kp_i(1-p_i)\]

Here, \(p_i\) are the probabilities of the sub-observations → take one count and divide it by the total observations in that leaf node. In our example, for the case of chest pain, the Gini impurity of the leaf node corresponding to the observations where chest pain is detected can be calculated as:

\[1 - (\frac{105}{105+39})^2 - (\frac{39}{105+39})^2 = 0.395\]

Similarly, the Gini impurity of the other leaf node for chest pain is:

\[1 - (\frac{34}{34+125})^2 - (\frac{125}{34+125})^2 = 0.336\]

Since the total number of heart patients in the leaf nodes for chest pain is not the same, we take a weighted average of Gini impurities as the Gini impurity for chest pain:

\[G_{cp} = (\frac{144}{144+159})0.395 + (\frac{159}{144+159})0.336 = 0.364\]

Similarly, the coefficient for good blood circulation is \(G_{GBC} = 0.360\) and the coefficient for blocked arteries is \(G_{BA} = 0.381\).

Since good blood circulation has the lowest Gini value, it has the lowest impurity → it separates heart disease the best! Thus, we will use it as the root node, and so our tree is:

So, in our decision we start by looking at good blood circulation. If the patient has good blood circulation, then there are 37 such patients with heart disease and 127 without; if they don’t have good blood circulation, then there are 100 such patients with heart disease and 33 without.

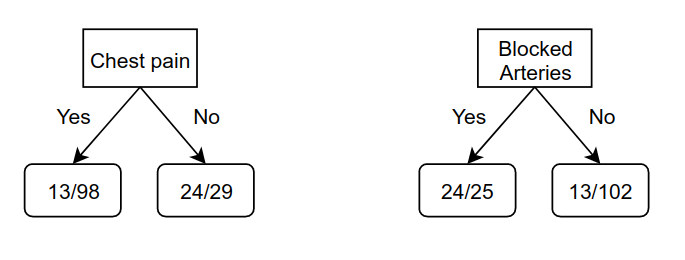

Now, in the left node we again compute the sub-trees for chest pain and blocked arteries, out of these 37 patients from the table, to get the following possible branches:

The Gini values are:

\[\begin{aligned} &G_{CP} = 0.3 \\ &G_{BA} = 0.290 \end{aligned}\]

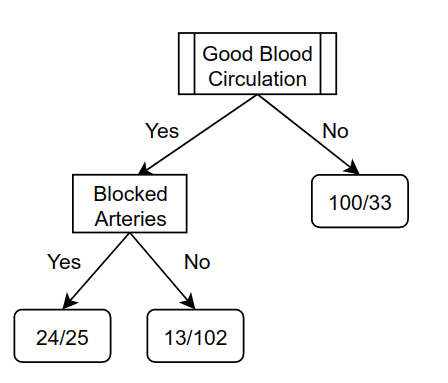

Thus, blocked arteries is a better metric after good blood circulation, and so we update it in the tree:

Now, we repeat this procedure for the left and right nodes of blocked arteries. For the left child of blocked arteries, we get the chest pain values as:

This will be added to the left child of blocked arteries. Ideally, we would repeat this procedure for the right child, but there is one important factor that comes into play here, which is that the Gini impurity of the right child of blocked arteries is:

\[1 - (\frac{13}{13 + 102})^2 - (\frac{102}{13 + 102})^2 = 0.2\]

While the Gini for the chest pain in this case is:

\[G_{CP} = 0.29\]

Thus, the right child of blocked arteries is by itself a better separator than chest pain, and so, we let it be! Hence, we can summarize the steps followed as:

  1. Calculate the Gini scores.
  2. If the Gini of the node is lower, then there is no point separating patients and it becomes a leaf node.
  3. If separating the data improves the Gini, then separate it with the separation of the lowest Gini value.

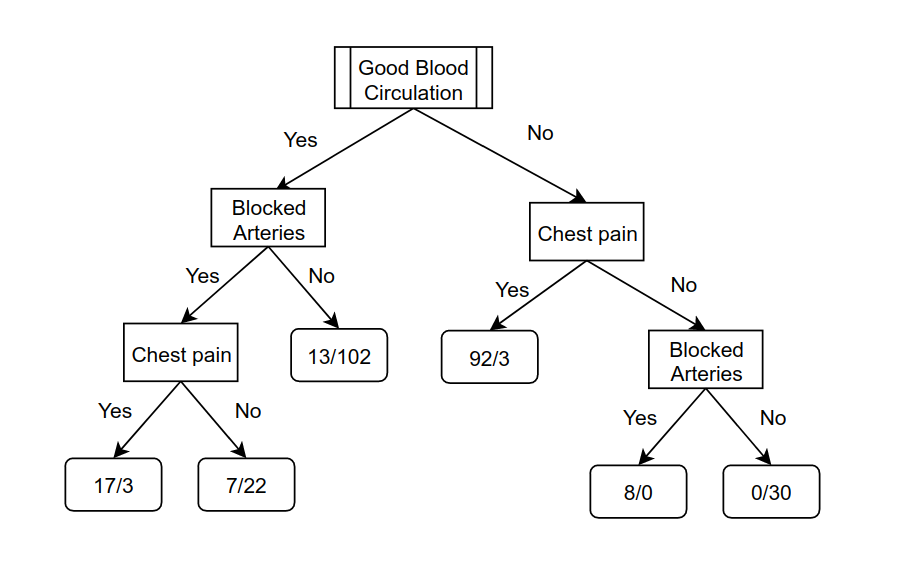

We repeat these steps for the right child of the root node, and the final tree comes out to be:

Other Impurities

Gini is just one of the ways to measure the impurities. It is used in the CART algorithm. Another measure for quantifying impurity is Entropy:

\[H(S) = - \sum_i p_i \log(p_i)\]

It is primarily used to define information, which is defined in terms of the change in entropy. It is used in the ID3 algorithm, which does similar stuff as described above. The basic idea of working with trees remains the same → use an impurity function to determine if the node needs further improvement, and then improve it by asking the question that would lead to the best separation.

Feature Selection

If we are to follow the procedure described previously for trees, then the issue that comes up is overfitting. To deal with this, we can do feature selection to simplify the tree. For example, if chest pain in the previous example never gave an improved separation as compared to the leaf nodes, then we can just remove this feature and thus, the tree would only have good blood circulation and blocked arteries.

Similarly, we could also specify a threshold for separation, saying that if the Gini is lower than this threshold, then we consider the separation good and thus, if any feature is unable to separate below this threshold, we discard it!
