Density Matters: Normalized Successor Measures for Zero-Shot Control

Aditya Mohan¹, Tongle Shen², Fan Feng², Siddhant Agarwal³, Caleb Chuck⁴, Benjamin Eysenbach⁴, Amy Zhang³

¹Universität Hannover ²University of California, San Diego ³University of Texas at Austin ⁴Princeton University

arXiv (coming soon) Code (coming soon) BibTeX

FB vs. Density-FB on cube-single, same start and goal (star). Heat map: where the critic expects the cube to be in the future (darker = more time; FB's negative values set to zero). FB predicts a future spread over the whole table and carries the cube away from the goal; Density-FB predicts the goal and places the cube there. Over 320 such starts with the cube in hand (64 states × 5 goals), Density-FB reaches the goal in 78% and FB in 23%.

Overview

Forward–Backward (FB) representations give zero-shot policies that do well on locomotion but fail at pick-and-place: the policy reaches the cube, then fails to keep its grasp or to carry the cube to the goal.
The cause is control bottlenecks: states where the choice of action decides which futures stay reachable. There, FB's low-rank least-squares fit can give a good and a bad action the same value, even at its optimum.
Density-FB turns FB's output into a probability distribution over future states and trains it with a cross-entropy TD target. It beats FB on every manipulation task, with median per-task gains of 63.2 / 30.0 / 8.5 points of success on OGBench / MetaWorld / ManiSkill.

Control bottlenecks

A successor measure $M^\pi(s,a,\cdot)$ is the discounted distribution of future states when the agent takes action $a$ in state $s$ and then follows policy $\pi$. Any reward's action value is an expectation under it: $Q_r^\pi(s,a) = \int r\, dM^\pi(s,a,\cdot)$. FB approximates the successor measure with a low-rank product $F(s,a,z)^\top B(s^+)$, fit by least squares. The best such fit projects each successor density onto the span of the backward features $B$. If two actions' future-state distributions differ only in a direction orthogonal to every feature, their projections coincide, and FB gives both actions the same value.

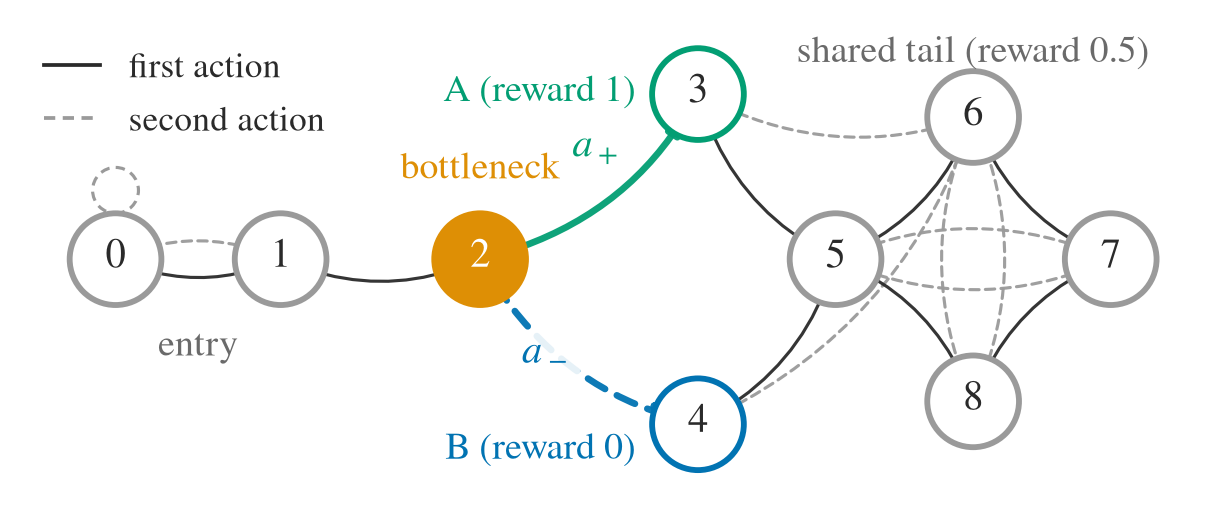

Nine-state MDP with a single bottleneck at state 2 leading to cluster A or cluster B, then a shared tail.

A control bottleneck. At state 2, action $a_+$ enters state A (3) and $a_-$ enters state B (4); both then step into the shared tail (states 5–8). Entering A gives reward 1, B gives 0, and every tail state gives 0.5. So $a_+$ has the higher return, although the two actions' futures differ for a single step.

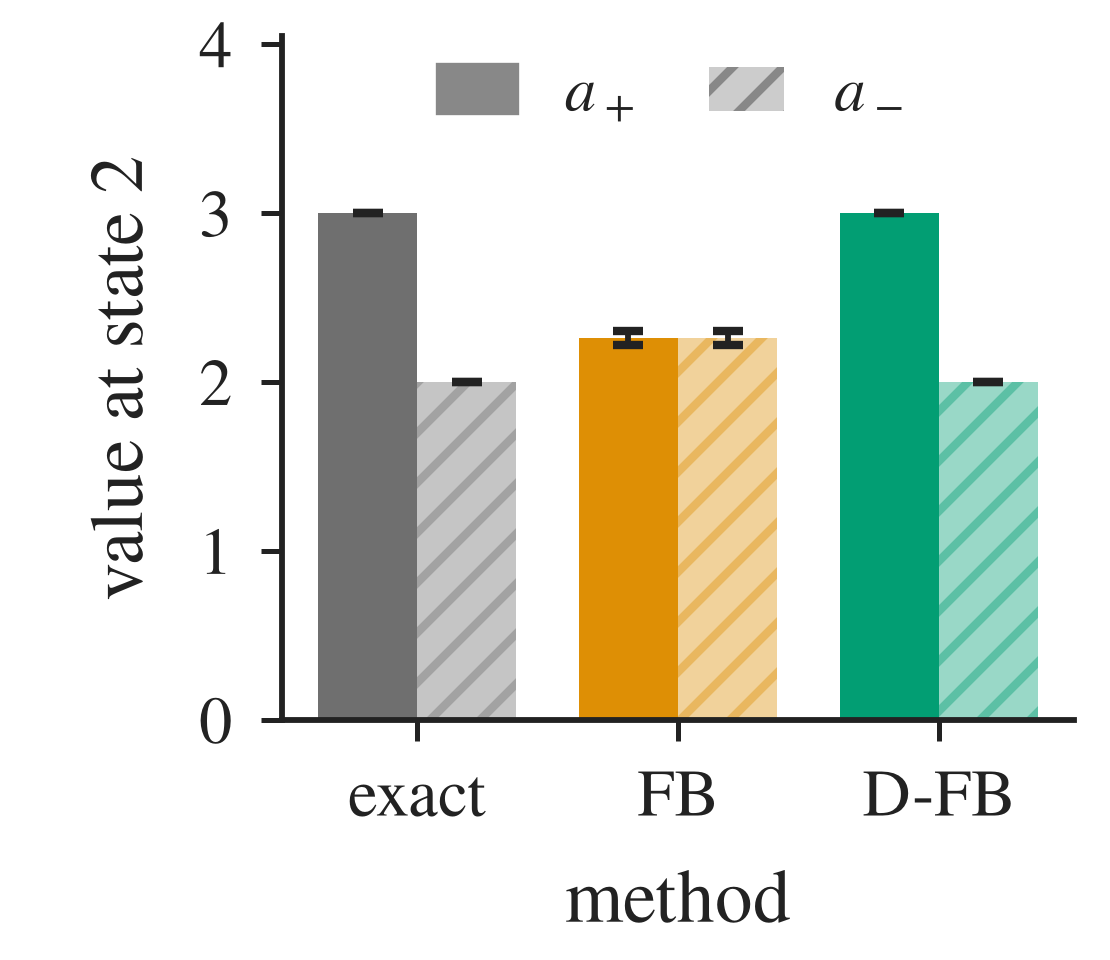

Predicted and exact action values at the bottleneck.

(a) action values at state 2

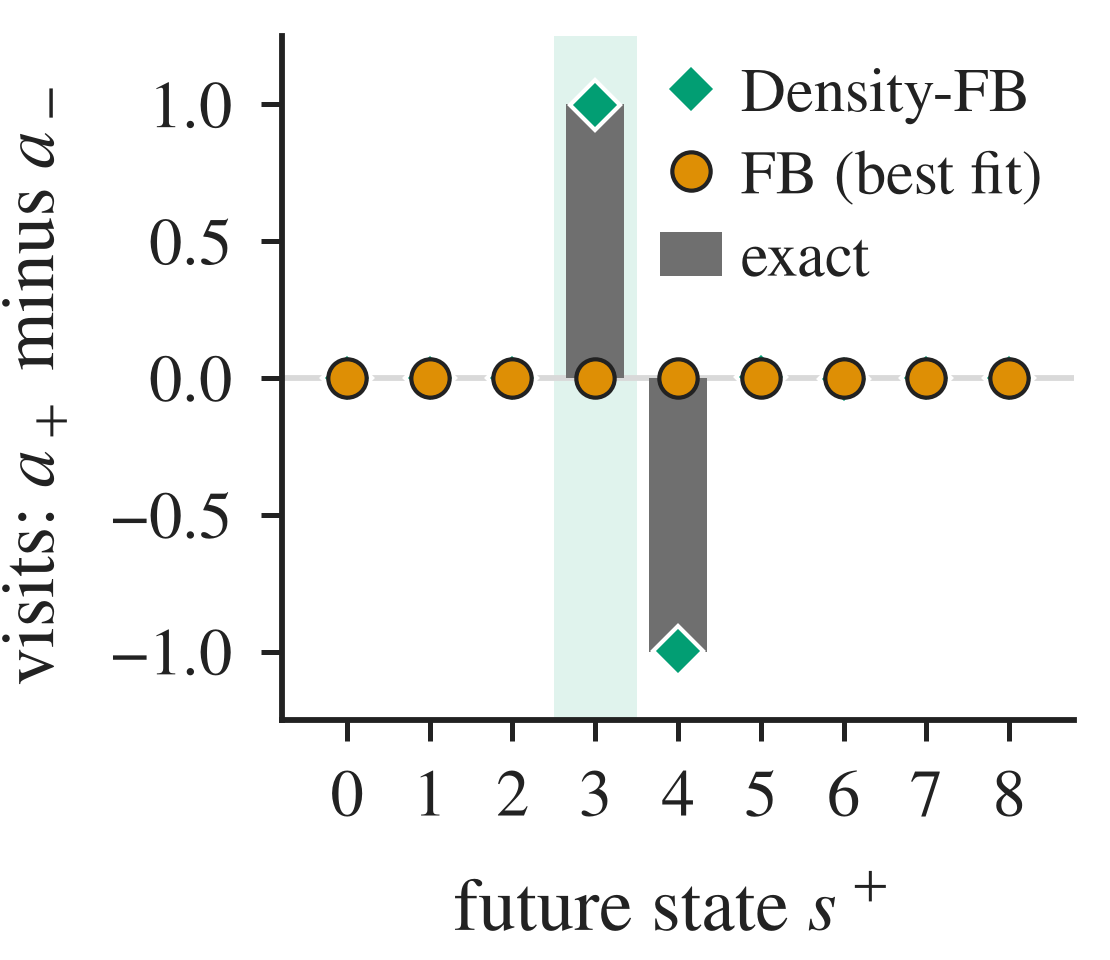

Differences in discounted future visits: exact, best fit on FB features, Density-FB.

(b) difference in future visits

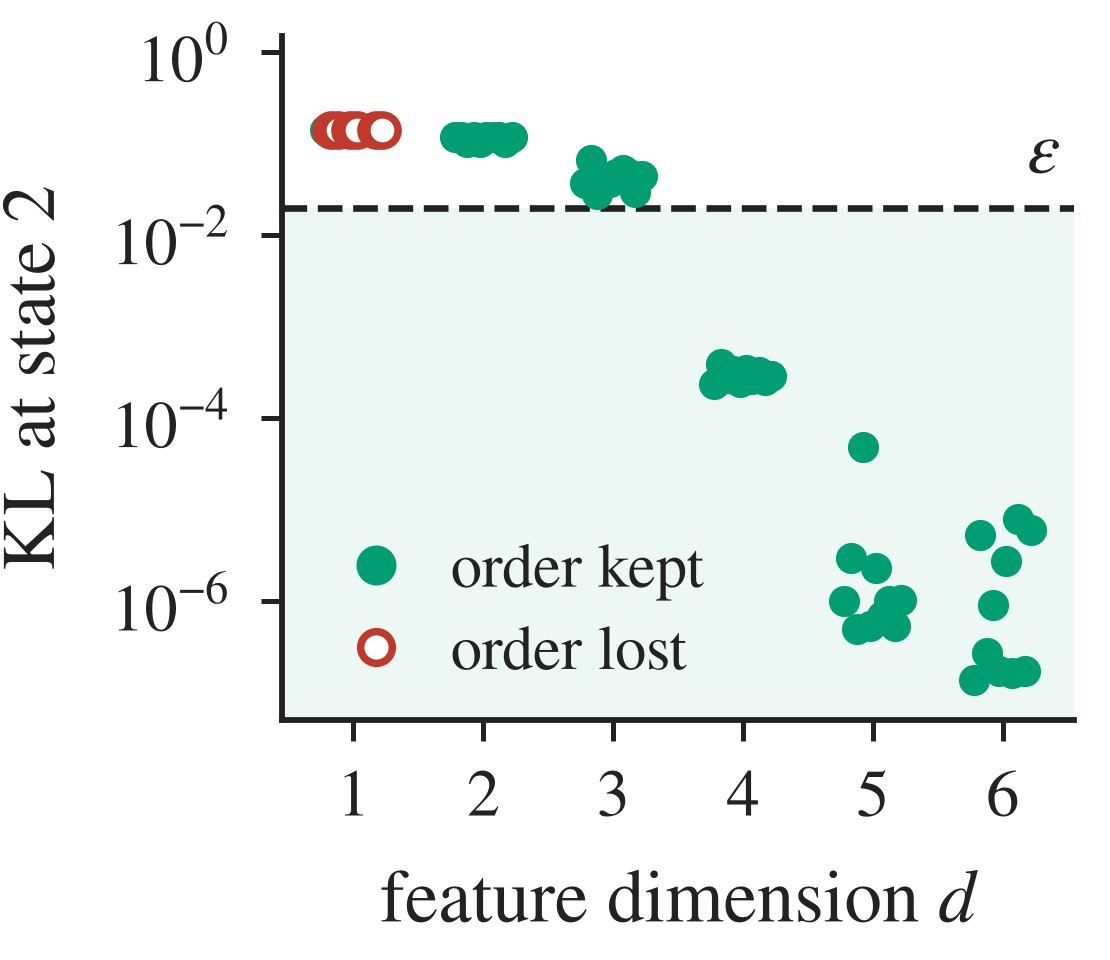

KL divergence to the exact successor distribution against the preservation threshold.

At the bottleneck, FB's features erase the action-value difference; Density-FB keeps it. (a) Predicted and exact action values with four features (D-FB: Density-FB); mean and 95% interval over ten runs. (b) Differences ($a_+ - a_-$) in discounted future visits. Gray: exact. Orange: best least-squares fit on FB's frozen features. Green: Density-FB at the same dimension. Refitting the forward vectors does not help: the gap is outside the span of the learned backward features. (c) KL divergence from the exact successor distribution to Density-FB's prediction at state 2, against the feature dimension (hollow red: $a_-$ ranked above $a_+$). Below the dashed line $\varepsilon$, the correct ordering is guaranteed; the paper gives the bound.

Density-FB

Density-FB keeps FB's two networks, $F_\theta(s,a,z)$ and $B_\theta(s^+)$, but reads their product as a score instead of a density. A softmax over candidate future states, with temperature $\tau$, turns the scores into a probability distribution. The low-rank constraint now sits on the log-density, so the prediction is no longer confined to the span of $B$.

Critic

On a minibatch of $n$ transitions, the next states $s^+_j := s'_j$ serve as the candidate futures. The critic predicts the discounted distribution of future states from $(s, a)$ under task $z$, over these candidates:

$$ p_j(s,a,z) = \frac{\exp\!\big(F_\theta(s,a,z)^\top B_\theta(s^+_j)/\tau\big)}{\sum_{\ell=1}^{n} \exp\!\big(F_\theta(s,a,z)^\top B_\theta(s^+_\ell)/\tau\big)}. $$

The TD target puts weight $1-\gamma$ on the observed next state and weight $\gamma$ on the target network's prediction $\bar p$ from that next state, with the next action drawn from the current policy. The critic fits this target by cross-entropy:

$$ \mathcal{L}_{\text{critic}} = -\frac{1}{n}\sum_{i,j} \Big[(1-\gamma)\,\mathbb{1}[j=i] + \gamma\,\bar p_j(s'_i, a'_i, z_i)\Big] \log p_j(s_i,a_i,z_i), \qquad a'_i \sim \pi(\cdot \mid s'_i, z_i). $$

Actor

The value of an action is the expected reward under the predicted distribution:

$$ \hat Q_r(s,a,z) = \frac{1}{1-\gamma} \sum_{j=1}^{n} p_j(s,a,z)\, r(s^+_j). $$

During pretraining, each task vector $z$ defines its own reward through the backward features, $r_z(s^+) = (B(s^+) - \hat\mu)^\top z / \sqrt{d}$, where $\hat\mu$ is the running mean of $B$ and $d$ the feature dimension. The actor $\pi(\cdot \mid s, z)$ maximizes $\hat Q_{r_z}(s,a,z)$ with behavior regularization.

Zero-shot control

For a new reward, a task vector $z_r$ is inferred from reward-labeled offline states. The frozen policy $\pi(\cdot \mid s, z_r)$ is then executed without further training.

Which part matters

On the bottleneck example above, we swap one ingredient at a time and measure how much of the true action-value difference each critic recovers.

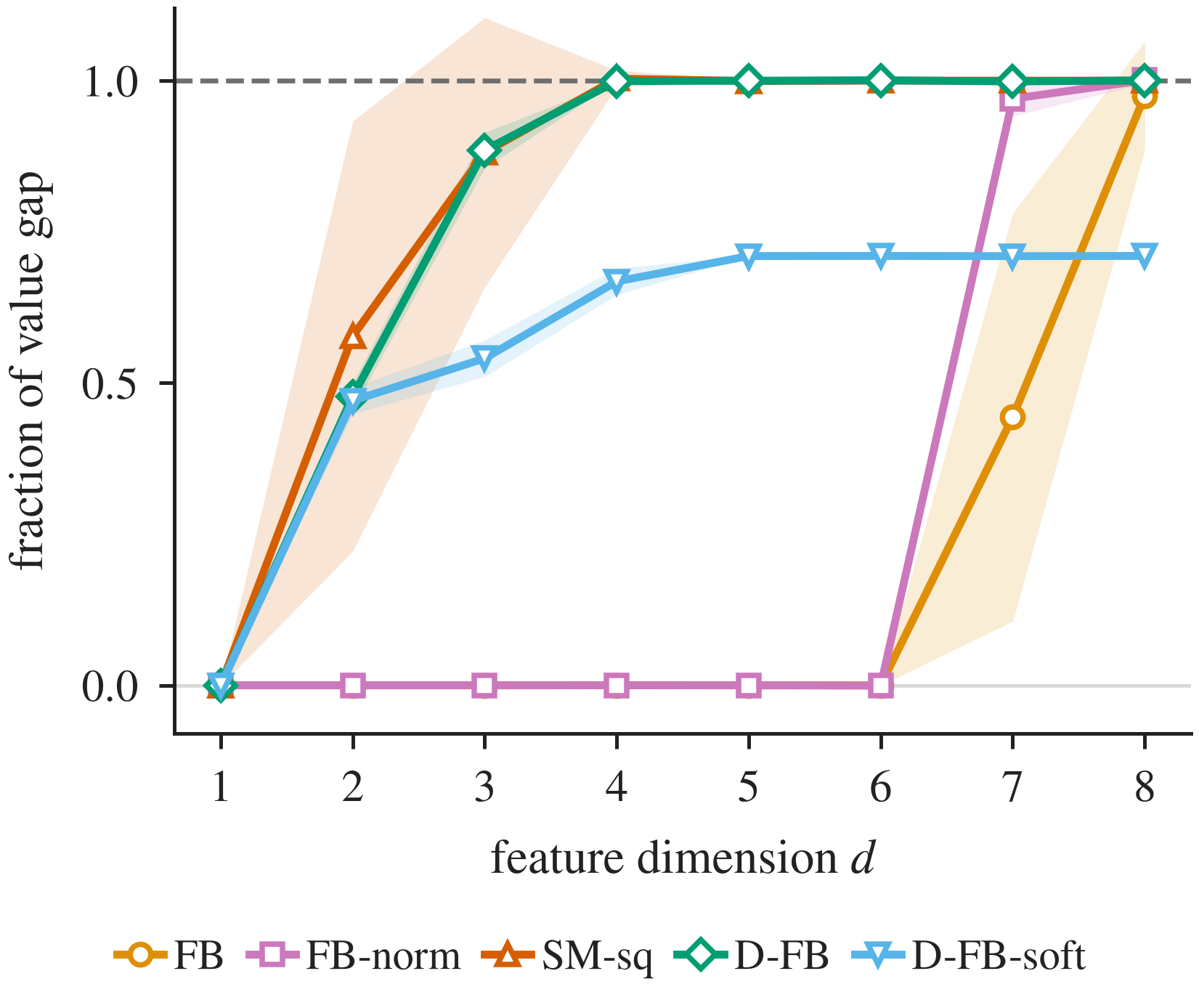

Recovered fraction of the action-value difference against feature dimension for FB, Density-FB and variants.

Density-FB keeps the action-value difference with fewer features. Predicted value difference at state 2 divided by the exact one, against the feature dimension; mean and 95% interval over ten TD runs. The dashed line is exact recovery. FB-norm (FB with a normalized target) recovers nothing up to six features, like FB. The softmax recovers the full difference from four features whether it is fit by cross-entropy (D-FB) or squared error (SM-sq), so the softmax, not the loss, is what matters. D-FB-soft (Density-FB with a smoothed immediate target) stops at about 71%.

Results

Success rate (%), mean ± SE over five seeds. Benchmark rows average the tasks. Bold marks the best mean and others within its SE; Δ is Density-FB's relative change over the best baseline. GCIQL, CRL and QRL are goal-conditioned methods; FB, HILP, RLDP and Density-FB are zero-shot successor-representation methods. Density-FB can condition its policy on a goal state or on a task vector inferred from reward samples; the table reports goal conditioning on OGBench and inferred task vectors on MetaWorld, ManiSkill and ExoRL. With inferred task vectors on OGBench, Density-FB reaches 82.9 / 31.7 / 54.0 on cube-single / cube-double / scene, still above every successor-representation baseline.

Task / domain	FB	HILP	RLDP	GCIQL	CRL	QRL	Density-FB	Δ

ExoRL (DMC returns)

On dense-reward locomotion without interaction bottlenecks, Density-FB has the highest mean return, leads on quadruped and point-mass, and trails FB on walker and cheetah.

Task / domain	FB	HILP	RLDP	Density-FB	Δ
